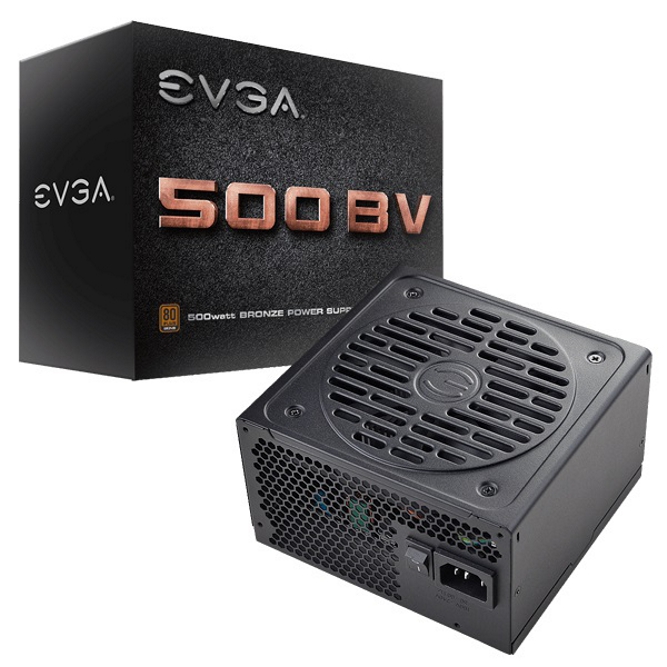

EVGA 500 BV, 80+ BRONZE 500W
$62.00
500W Power with Efficiency and Heavy-Duty Protections
- Description
Description
EVGA 500 BV, 80+ BRONZE 500W, 3 Year Warranty, Power Supply 100-BV-0500-K1
About this item:
- 3 Year Warranty
- 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
- Quiet and Intelligent Auto Fan for near-silent operation
CABLE LENGTH
| ATX Cable | 1x 550mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 1x 550mm, 670mm |
| SATA Cable | 2x 450mm, 570mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm + 810mm (Floppy) |
| AC Power | 1x 1200mm |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x 8pin (4+4) |
| PCIe | 2x 8pin (6+2) |
| SATA | 4x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |
INPUT
| Input Voltage | 110 – 240 VAC |
| AC Input | 8/4A |
| Input Frequency Range | 50 – 60 Hz |
| Efficiency | 85% Typical |
OUTPUT
| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max output | 20A | 20A | 40A | 0.3A | 3A |
| 480W | |||||
| 120W | 480W | 3.6W | 15W | ||
| Total | 500W @ +30C | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 30° C |
| Japanese Capacitors | No |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Gross Weight | 4 lbs |
| Size | 85mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
| Fan Size / Bearing | 120mm Sleeve Bearing |
| UPC | 843368047023 |
| EAN | 4250812419033 |
